Primary RF capability

Acquisition of supported DJI O1-O4 OcuSync / Drone ID signals, including supported non-cooperative aircraft.

Standard antennas

5

Power requirement

90-watt Power over Ethernet (PoE)

Remote ID reception

2.4 and 5.8 GHz; supported Wi-Fi and Bluetooth broadcasts. Core capability on V10; receiver option available across the AMS family.

Reception range

1-12 miles with standard antennas, depending on the environment, aircraft and installation.

Remote ID capacity

Hundreds of simultaneous supported targets when configured with the Remote ID receiver.

Live-track delivery

Normally under one second over cellular; configuration and connectivity dependent. Alert transit and human response are separate.

ADS-B option

Dual-band 978 / 1090 MHz reception; adds 2 antennas (7 total).

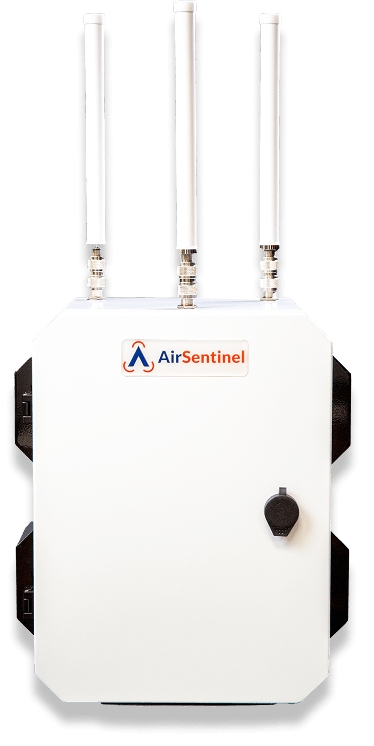

Enclosure

IP65-rated, weather-sealed locking enclosure. Shared AMS form factor.

Base dimensions

19 x 14 x 8 in (approximately 483 x 356 x 203 mm), excluding antennas and mounting accessories.

Reference weight

17 lb (approximately 7.7 kg), published AMS enclosure configuration; installed weight varies with model and options.

Mounting

Rail, pole and wall mounting. Fixed or mobile installations. Direct-mounted or remotely mounted antennas.

Connectivity

LTE cellular and Ethernet. Local and cloud API access.

Output

Real-time JSON data for compatible integrations; custom CSV reporting available on request.

Operations

Remote diagnostics and configuration support for distributed deployments.

Manufacturing

Produced in the United States with American-made and global components.

NDAA configuration

NDAA-compliant version can be produced on request.

Antenna totals include the standard configuration; the ADS-B option adds two. Confirm the supplied PoE equipment, installed weight, antenna clearances and site-specific operating-temperature requirement with AirSentinel. Coverage and available data vary by aircraft, protocol, firmware and installation.
